HOLZ-HER DYNESTIC Series: Time savings in production with HOLZ-HER nesting technology

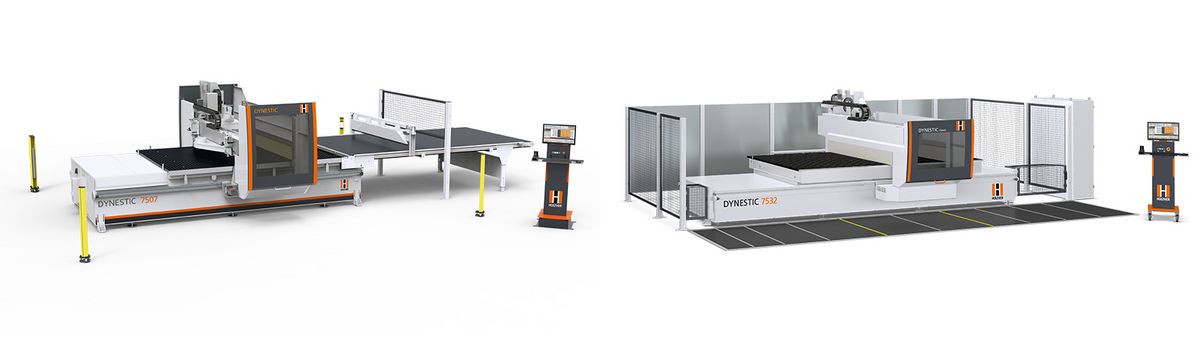

HOLZ-HER has its brand new nesting technology on the market. Get all information about the innovative nesting CNC machining centers DYNESTIC 7532, DYNESTIC 7507 and DYNESTIC 7505. All three machining centers have a high automation capability and are available in different equipment variants.

HOLZ-HER's nesting technology ensures efficient formatting and drilling on one machine. Here the panel is held by large-surface vacuum on a wear plate. The great advantage of this production method is production of exactly formatted workpieces, already provided with groove or rebate in the rear wall and all required vertical holes for shelves, connectors, etc. Above all the entire process is accomplished without additional handling work and is therefore extremely efficient in terms of time and resources.

The essential prerequisite for nesting is, however, that the proper software be fully integrated into the machining process. Here HOLZ-HER offers a free-form solution for stairs and frame constructions as well as a purely rectangular nesting feature. With its versatile import possibilities for highly differing nesting modules as well as complete graphic control surface and barcode interface, the machine is optimized for comprehensive applications.

HOLZ-HER's nesting CNC machining centers allow cut-optimized machining and cutting on panel materials. The automation components for material handling makes the DYNESTIC series even more efficient.

All machines

HOLZ-HER DYNESTIC 7535

The 5-axis CNC nesting machine from HOLZHER - dynamic processing in XXL format with the Dynestic 7535

Dynamic 5-axis machining in XXL format

  • Automation components
  • Solid gantry design
  • Machining in Y direction: up to 2,200 mm
  • Machining in X Direction: Up to 3,700/4,600/6,250 mm
Detail page  DYNESTIC 7535

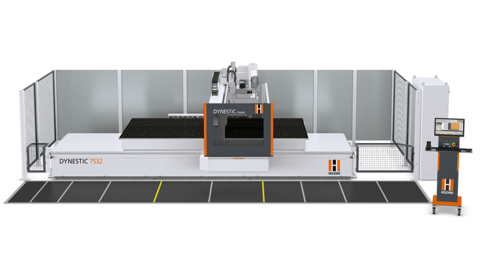

HOLZ-HER DYNESTIC 7532

Nesting technology at the highest level - the new gantry cnc machine from HOLZHER

High-end gantry CNC machining for nesting and much more

  • Automation components
  • Solid gantry design
  • Machining in Y Direction: Up to 2200 mm
  • Machining in X Direction: Up to 3700 / 4600 mm
Detail page  DYNESTIC 7532

HOLZ-HER DYNESTIC 7507

Nesting technology at the highest level -  the new nesting cnc machine Dynestic 7507 from HOLZHER

Intelligent and future-oriented nesting processing

  • Solid gantry design
  • Machining in Y Direction: Up to 2200 mm
  • Machining in X Direction: up to 3100 / 4600 mm
Detail page  DYNESTIC 7507

HOLZ-HER DYNESTIC 7505

Nesting technology at the highest level - the new nesting CNC machine DYNESTIC 7505 from HOLZHER

High-efficient panel processing with the latest nesting technology

  • Solid gantry design
  • Machining in Y Direction: Up to 1580 mm
  • Machining in X Direction: up to 3100 / 3700 mm
Detail page  DYNESTIC 7505

References

Simple free shaping with storage/nesting combination

Highly satisfied with the CNC Nesting plate storage combination in production - the reference Spielgeräte Sauerland

Templates are a thing of the past: Nesting technology is unbeatable for organic and decorative free shaping from panel material. This process with fully automatic panel storage in use at Sauerland Spielgeräte GmbH is truly efficient and ergonomic.

The point is having fun and providing creating play and learning activities, including physical and social activities: Sauerland Spielgeräte GmbH specializes in playground equipment of all types. With nearly 100 employees, this family-owned company in Salzkotten-Niederntudorf develops and produces a highly varied range of equipment to provide fun and enjoyment for small adventurers. This extremely versatile line of products ranges from swings to fanciful play houses for climbing and complete playground landscapes. [...]

Milling, Drilling, Engraving...

In the meantime the nesting/storage combination custom-made by HOLZ-HER to meet the requirements of Sauerland Spielgeräte GmbH provides a fully automatic production process for nearly 1,000 parts with different shapes and designs, all laid out for operation by one person. The complete system consists of the Store Master storage and material handling system with direct connection to the Dynestic 7532 Automatic CNC nesting machine. The process and operator guidance could hardly be simpler: Just use the machine control panel to call the optimized shaped part nest generated in a CAD/CAM system and processing can start. The manipulator moves the appropriate panel on the transfer table to the CNC machine. From here the machine pulls an unmachined panel onto the processing table equipped with an MDF protection panel and uses vacuum to clamp it right through the MDF panel. The machining center then completes all holes, milling operations and engraving on the individual workpieces. [...]

Further images

Professional and precise milling out of playground equipment with the nesting CNC solution from HOLZHER - unbeatable in combination with an automatic plate storage system
Professional and precise milling out of playground equipment with the nesting CNC solution from HOLZHER - unbeatable in combination with an automatic plate storage system
Professional and precise milling out of playground equipment with the nesting CNC solution from HOLZHER - unbeatable in combination with an automatic plate storage system

Three heroes – one vision: 5-axis CNC Nesting machining!

Customer reference K & M with the nesting CNC machining center Nextec 7735

A story with three heroes: Sascha Kleisinger, his best friend Alexander Michel and the new NEXTEC 7735. These two carpenters founded their mutual company, the K&M Carpentry Shop, 17 years ago in a cowshed with 200 sq. meters of floor space.

From the very beginning the common idea was: “We want to build high quality, sophisticated, beautiful furniture.” Today the shop is located on a 6,000 sq. meter lot and has 30 employees. The prerequisite for such success stories is creative and rapid reaction to changes in the market. Sascha Kleisinger: “After just a short time, we started making plans to industrialize our carpentry shop, without sacrificing our positioning as a craft shop.” This was the time to take the third hero on board. The new NEXTEC 7735 from HOLZ-HER. This ingenious machine concept was the basis for the planned further growth perspectives. As the two carpenters saw their first NEXTEC demonstrations, they knew: That is precisely the CNC technology we were looking for.

On the 15 meter long machine with elevating table and conveyor belt, Sascha Kleisinger and Alexander Michel produce furniture components for regional carpentry shops as capable service providers. For this purpose a 1,000 sq. meter building was rented and a private company established with the name: Rheinhessen-Möbel [Rheinhessen Furniture] “This clearly shows that we are not competitors, but rather partners for our colleagues with fewer machines. But we also want to work for kitchen studios, who are otherwise dependent on the long delivery times in the industry.” K&M serves private customers exclusively.

Saws, edgebanders and CNC machining centers from HOLZ-HER were in operation at these successful carpenters from the very beginning. “This was the key to building up a bond of trust in the course of years. Technology, performance and service provide a perfect overall picture for us. This is also why we were confident in putting our full trust in a top machine like the new NEXTEC.“
