HOLZ-HER DYNESTIC 7507: Intelligent and future-oriented nesting processing

Nesting technology at the highest level -  the new nesting cnc machine Dynestic 7507 from HOLZHER

The nesting CNC machine DYNESTIC 7507 enables high efficient panel processing with the newest nesting technology in modern gantry design. With machining dimensions from 3,100 mm (4,600 mm) in X-direction and 2,200 mm in Y-direction, the optimized construction facilitates very short processing cycles with the best processing results in the same time.

The nesting CNC processing center is equipped with an integrated 6-position linear tool changer which could perfectly be extended to 12 tool positions. New highlight is an LED machine lettering which displays the operating status of the machine. Depending on the colour of the lettering it is possible to see which is the current operating status of the DYNESTIC 7507. Moreover the DYNESTIC 7507 has ceramic stored high performance spindles as well as a fully equipped drilling head with up to 24 drilling spindles and grooving saws in X-direction.

The nesting machine DYNESTIC 7507 is available in the classic version and in the push version. The push version contains an automated discharge pusher and an integrated vacuum as well as a discharge table and a conveyor belt.

Prices
x

Different requirements - different prices

The price of a HOLZHER machine is just as individual as your requirements are. Therefore, let us discuss briefly what is most important to you – you will then receive our preliminary, non-binding quote.

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.
Personal advice
x

Personal advice – for higher productivity and greater efficiency

Together with your HOLZHER expert you will find the ideal machine for your requirements. Simply submit the completed form, and your local HOLZHER expert will be happy to discuss all further details with you.

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.

Here is what the HOLZ-HER DYNESTIC 7507 offers

  • Machining in Y Direction: Up to 2200 mm
  • Machining in X Direction: up to 3100 / 4600 mm

Technical Details

"BetterNest" - the optimum nesting software

Innovative operator software for optimized cutting and processing
Innovative operator software for optimized cutting and processing
Innovative operator software for optimized cutting and processing

Innovative operator software for optimized cutting and processing

The increasing popularity of nesting technology as a combined cutting and CNC processing solution for large quantities of panels has also increased the requirements placed on the nesting software. For this reason, HOLZ-HER offers the "BetterNest" software as an auxiliary module for the CAMPUS / NC Hops software for the functional nesting machining centers in the DYNESTIC series.

This module is available for pure rectangular nesting or as a free-form version with a completely new type of algorithm offering never-before-achievable nesting results with cutting losses far below that obtained with conventional nesting software. In combination with its simple operation in spite of its enormous versatility, it significantly facilitates programming for users in the office and on the machine while ensuring maximum process reliability.

Highly flexible nesting table

High-Flow Nesting Table - Nesting Technology for rational production
High-Flow Nesting Table - Nesting Technology for rational production
High-Flow Nesting Table - Nesting Technology for rational production

High-flow nesting table

Nesting technology for rational production. With the nesting process, a porous protective panel – usually a thin MDF panel – is held down on the machine table by a vacuum. It provides a large surface for suction and serves to support the workpieces to be processed. Nesting technology allows optimized processing and cutting of panel materials.

  • For formatting nesting cutting plans on the nesting table.

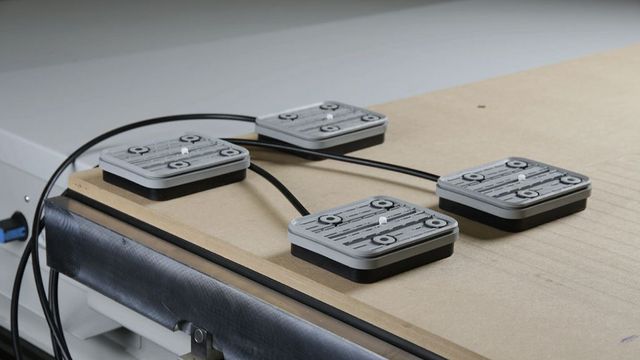

  • Workpieces can be processed with manually positioned suction cups.
  • The HOLZ-HER nesting table has small matrix dimensions – of only 50 mm – to ensure maximum vacuum flux over the entire table surface.

Drilling head with upgrade possibility 7505/07

Drilling head with upgrade possibility 7505/07

Convincing processing results

Even in the standard equipment the DYNESTIC models 7505 and 7507 are provided with a fully equipped drilling head with 14 spindles and grooving saw. For higher drilling performance the XL drilling head can be chosen. It has up to 24 drilling spindles and a grooving saw in X-direction and therefore is the perfect solution.

Flexible tool changer

The tool changer is extendable up to 12 tool positions
The 6-position Pick-up changer is integrated in the machine base.
  • The 6-position Pick-up changer is integrated in the machine base. Because of the pneumatically controlled cover it is protected against dust and splinters. An extension option of up to 12 tool positions is available.
  • Optional available with X/Y changer extension for the DYNESTIC angle gear.

LED machine lettering

Depending on the colour of the LED machine lettering the operating status of the nesting machine can be determined clearly

The machine lettering "DYNESTIC" is illuminated by LEDs. Depending on the colour of the LED machine lettering the operating status of the nesting machine can be determined clearly at a glance.

  • Green lettering: machine is ready
  • Orange lettering: machine is in operation
  • Red lettering: machine is not ready

TouchTool tool length measurement

TouchTool is the perfect system for the tool length measurement and updates the appropriate values in the tool database.

TouchTool is the perfect system for the tool length measurement and updates the appropriate values in the tool database. Additionally Touchtool enables an early realization of tool breakage.

TouchProbe workpiece measurement

The precision measuring probe TouchProbe measures workpiece length, workpiece depth and material thickness with its ceramic ball caliper and transmits the data to the control of the CNC machine. Thereby measuring errors in the program are automatically updated.

TouchLabel - overview of labels

TouchLabel - the perfect solution for labeling
TouchLabel - the perfect solution for labeling

TouchLabel - the perfect solution for labeling

The 21,5" touch screen provides a perfect overview of the nesting results. Simply tap the workpiece and the label printer included in the package prints out a self-adhesive barcode label.

The integrated CAMPUS module label printer allows printout of normal text as well as barcodes (barcode and 2D data matrix). Naturally, your barcode labels can be adapted to your specific requirements with the label template editor.

Direct Label - integrated fully automatic label printer

The industrial printer unit Direct Label is installed in a user-friendly protective housing in the moving column of the nesting machine. Label positions are generated and transferred fully automated via the CAMPUS machine software and the BetterNest nesting software.

The machine picks up the labels one after the other via a 90° rotating stamp on the printer and positions them fully automated on the raw plate before the nesting processing. Both normal text and barcode printouts (barcode and 2D data matrix) are possible. A label template editor for linking to label variations is integrated as well.

The perfect solution for your material range

One machine - unlimited possibilities

Due to their flexible options the DYNESTIC models are perfectly designed for the processing of many different materials. The processing of sensitive and heavy materials is enabled because of air buffers. "ColdGun"is suitable for synthetic material, aluminium and composite materials. Due to this "ColdGun" the workpieces and milling tools stay constantly cool. Because of that this option enables extrem long tool lifetimes. Amongst others the following materials can be processed with the DYNESTIC models

  • Plexiglass
  • Plastics
  • Solid surface
  • Aluminium composite material
  • Alu Core
  • Alu Profile
  • Panels
  • MDF panels
  • Solid wood glueboards

Excellent operator ergonomy

This Control desk is equipped with an 21,5" and 16:9 monitor and offers a perfect operator ergonomy.

The ergonomic design of your workplace is constantly growing in significance. HOLZ-HER offers a control desk, which was developed specifically for the DYNESTIC series. This control desk is equipped with an 21,5" and 16:9 monitor and ensures perfect operator ergonomics.

Depending on the machine equipment the operator desk can be chosen optionally with a mobile base. The wheels enable to move the desk to the place, where it is most suitable for your working process.

Definitely the full usage

Special vacuums for the grid table allow e.g. horizontal drilling and profile processing on different workpieces.

The possibility to strike the workpieces optionally on the front stop bar, makes the DYNESTIC series even more flexible. Formatted workpieces can be created and edited effortlessly. Special vacuums for the grid table allow e.g. horizontal drilling and profile processing on different workpieces.

Integrated vacuum pumps

The integrated vacuum pumps are extremely space-saving

The vacuum pumps of the DYNESTIC 7505 and  DYNESTIC 7507 are integrated in the machine base and therefore extremely space-saving. The extremely high performance, efficient vacuum pumps ensure the workpiece is held securely. These low maintenance, dry-running pumps are also distinguished by their low noise emissions and extremely low maintenance requirements.

Moreover, our intelligent ECO VAC vacuum control uses a software program to ensure that the required vacuum power is always present when several pumps are used.


Technical Details

An integrated network of machines ensures production with maximum efficiency

Maximum efficiency with Holz-Her machine networking

HOLZ-HER realizes your production ideas within 20 minutes from the first mouse click to finished furniture with seamless machine networking.

Learn more


Energy savings made easy

The intelligent ECO Mode energy management for HOLZ-HER CNC machines not only helps preserve our environment - it also saves you money.

Learn more
